Command Pro Specifications





MODEL CV13
MAX. POWER @ 3600 RPM
hp (kW) 13 (9.75)
DISPLACEMENT cu. in. (cc) 24.3 (398)
BORE in. (mm) 3.43 (87)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 21.2 (28.7) @ 2600
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 87 (39.5)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 17.8 x 17.67 x 14.1

*Length measures valve cover to base of blower housing. Width includes
muffler. Height includes recoil starter to mounting feet.



MODEL CV15
MAX. POWER @ 3600 RPM
hp (kW) 15 (11.2)
DISPLACEMENT cu. in. (cc) 26.0 (426)
BORE in. (mm) 3.55 (90)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 23.7 (32.1) @ 2400
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 87 (39.5)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 17.8 x 17.67 x 14.1

*Length measures valve cover to base of blower housing. Width includes
muffler. Height includes recoil starter to mounting feet.



MODEL CV17
MAX. POWER @ 3600 RPM
hp (kW) 17 (12.7)
DISPLACEMENT cu. in. (cc) 34.2 (561)
BORE in. (mm) 2.87 (73)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 31.7 (42.9) @ 2000
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.

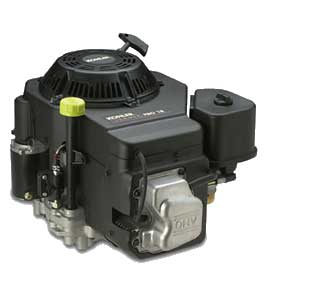

MODEL CV493
MAX. POWER @ 3600 RPM
hp (kW) 18 (13.4)
DISPLACEMENT cu. in. (cc) 29.9 (490)
BORE in. (mm) 3.54 (90)
STROKE in. (mm) 3.03 (77)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 28.1 (38.1) @ 2800
COMPRESSION RATIO 8.7:1
DRY WEIGHT lbs. (kg) 90 (40.8)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 17.8 x 17.67 x 14.1

*Length measures valve cover to base of blower housing. Width includes
muffler. Height includes recoil starter to mounting feet.



MODEL CV18
MAX. POWER @ 3600 RPM
hp (kW) 18 (13.4)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.8 (44.4) @ 2200
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.



MODEL CV20
MAX. POWER @ 3600 RPM
hp (kW) 20 (14.9)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.6 (44.2) @ 2600
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.

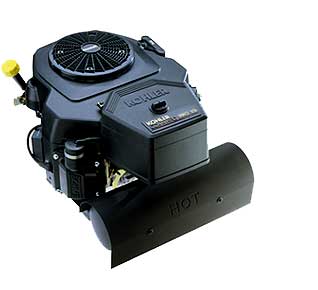

MODEL CV22
MAX. POWER @ 3600 RPM
hp (kW) 22 (16.4)
DISPLACEMENT cu. in. (cc) 41.1 (674)
BORE in. (mm) 3.15 (80)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 38.2 (51.8) @ 2200
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.



MODEL CV730
MAX. POWER @ 3600 RPM
hp (kW) 25 (18.6)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.27 (83)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 39.9 (54.1) @ 2800
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.

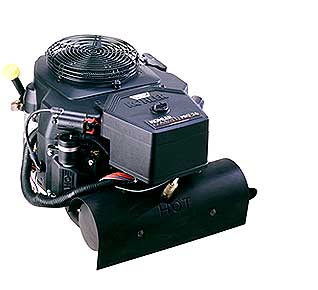

MODEL **CV26
MAX. POWER @ 3600 RPM
hp (kW) 26 (19.4)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.27 (83)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 40 (54.2) @ 2800
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.
**Electronic fuel injection



MODEL CV740
MAX. POWER @ 3600 RPM
hp (kW) 27 (20.1)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.3 (83)
STROKE in. (mm) 2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 42.7 (57.9) @ 3000
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.

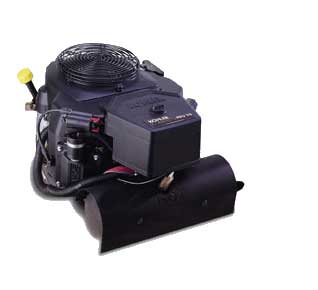

MODEL **CV745
MAX. POWER @ 3600 RPM
hp (kW) 28 (20.9)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.3 (83)
STROKE in. (mm) 2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 44.8 (60.7) @ 2200
COMPRESSION RATIO 9.0:1 DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 21.2 x 17.7 x 14.3

*Length is blower housing to air cleaner. Width is spark plug to spark
plug. Height is top of air cleaner cover to mounting feet.
**Electronic fuel injection



MODEL CH6
MAX. POWER @ 4000 RPM
hp (kW) 6 (4.47)
DISPLACEMENT cu. in. (cc) 10.98 (180)
BORE in. (mm) 2.64 (67)
STROKE in. (mm) 2.01 (51)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 8.59 (11.65) @ 2200
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 45 (20.4)
OIL CAPACITY U.S. quarts (liters) 0.6 (.6)
FUEL CAPACITY U.S. pints (liters) 3.0 (2.8)
LUBRICATION Splash
*DIMENSIONS L x W x H 11.5 x 14.9 x 13.6

*Length includes recoil starter to PTO face.



MODEL CH11
MAX. POWER @ 3600 RPM
hp (kW) 11 (8.2)
DISPLACEMENT cu. in. (cc) 24.3 (398)
BORE in. (mm) 3.43 (87)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 19.7 (26.7) @ 2400
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 88.3 (40)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.41 x 20.18 x 17.7

*Length includes recoil stater to PTO mounting face. (Subtract 2.35)



MODEL CH13
MAX. POWER @ 3600 RPM
hp (kW) 13 (9.75)
DISPLACEMENT cu. in. (cc) 24.3 (398)
BORE in. (mm) 3.43 (87)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 21.2 (28.7) @ 2400
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 88.3 (40)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.41 x 20.18 x 17.7

*Length includes recoil stater to PTO mounting face. (Subtract 2.35)



MODEL CH15
MAX. POWER @ 3600 RPM
hp (kW) 15 (11.2)
DISPLACEMENT cu. in. (cc) 26.0 (426)
BORE in. (mm) 3.55 (90)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 25.3 (34.3) @ 2400
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 88.3 (40)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.41 x 20.18 x 17.7

*Length includes recoil stater to PTO mounting face. (Subtract 2.35)




MODEL CH18
MAX. POWER @ 3600 RPM
hp (kW) 18 (13.4)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.8 (44.4) @ 2200
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.



MODEL CH20
MAX. POWER @ 3600 RPM
hp (kW) 20 (14.9)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.6 (44.2) @ 2600
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.



MODEL CH22
MAX. POWER @ 3600 RPM
hp (kW) 22 (16.4)
DISPLACEMENT cu. in. (cc) 41.1 (674)
BORE in. (mm) 3.15 (80)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 38.2 (51.8) @ 2200
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2 (1.9)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.



MODEL CH730
MAX. POWER @ 3600 RPM
hp (kW) 25 (18.6)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.27 (83)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 39.9 (54.1) @ 2800
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.

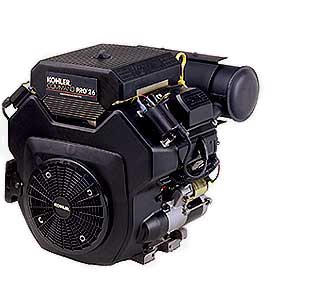

MODEL **CH26
MAX. POWER @ 3600 RPM
hp (kW) 26 (19.4)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.27 (83)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 40.0 (54.2) @ 2800
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.
**Electronic fuel injection



MODEL CH740
MAX. POWER @ 3600 RPM
hp (kW) 27 (20.1)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.3 (83)
STROKE in. (mm) 2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 42.7 (57.9) @ 3000
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet.



MODEL **CH745
MAX. POWER @ 3600 RPM
hp (kW) 28 (20.9)
DISPLACEMENT cu. in. (cc) 44.0 (725)
BORE in. (mm) 3.3 (83)
STROKE in. (mm) 2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 44.8 (60.7) @ 2200
COMPRESSION RATIO 9.0:1
DRY WEIGHT lbs. (kg) 94 (43)
OIL CAPACITY U.S. quarts (liters) 2.1 (2)
LUBRICATION Full pressure w/full-flow filter
*DIMENSIONS L x W x H 13.8 x 17.7 x 19.0

*Length is grass screen to PTO mounting face. Width is spark plug to spark
plug. Height is top of air cleaner to mounting feet. **Electronic fuel injection
