Magnum Specifications

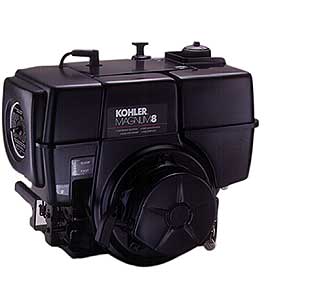

MODEL M8
MAX. POWER @ 3600 RPM
hp (kW) 8 (6)
DISPLACEMENT cu. in. (cc) 18.6 (305)
BORE in. (mm) 2.94 (74)
STROKE in. (mm) 2.75 (69)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 13.6 (18.4) @ 2200
COMPRESSION RATIO 6.8:1
DRY WEIGHT lbs. (kg) 71 (32)
OIL CAPACITY U.S. quarts (liters) 2.5 (1.2)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Splash
*DIMENSIONS L x W x H 12.6 x 16.8 x 14.4

*Length/height includes recoil starter to PTO mounting face.

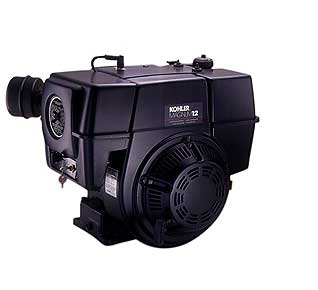

MODEL M12
MAX. POWER @ 3600 RPM
hp (kW) 12 (9)
DISPLACEMENT cu. in. (cc) 29.1 (476)
BORE in. (mm) 3.38 (85)
STROKE in. (mm) 3.25 (82)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 22.3 (30.2) @ 2200
COMPRESSION RATIO 6.6:1
DRY WEIGHT lbs. (kg) 129 (58)
OIL CAPACITY U.S. quarts (liters) 4.0 (1.9)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Splash
*DIMENSIONS L x W x H 13.4 x 20.9 x 18.7

*Length/height includes recoil starter to PTO mounting face.

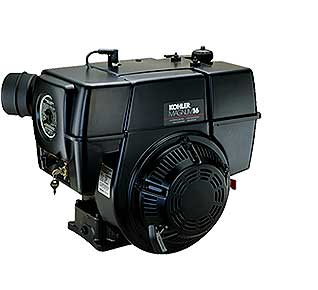

MODEL M16
MAX. POWER @ 3600 RPM
hp (kW) 16 (11.9)
DISPLACEMENT cu. in. (cc) 35.9 (588)
BORE in. (mm) 3.7 (95)
STROKE in. (mm) 3.25 (82)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 28.0 (38.0) @ 2800
COMPRESSION RATIO 7.3:1
DRY WEIGHT lbs. (kg) 129 (58)
OIL CAPACITY U.S. quarts (liters) 4.0 (1.9)
FUEL CAPACITY U.S. pints (liters) 5.0 (4.7)
LUBRICATION Splash
*DIMENSIONS L x W x H 13.5 x 20.9 x 18.7

*Length/height includes recoil starter to PTO mounting face.
